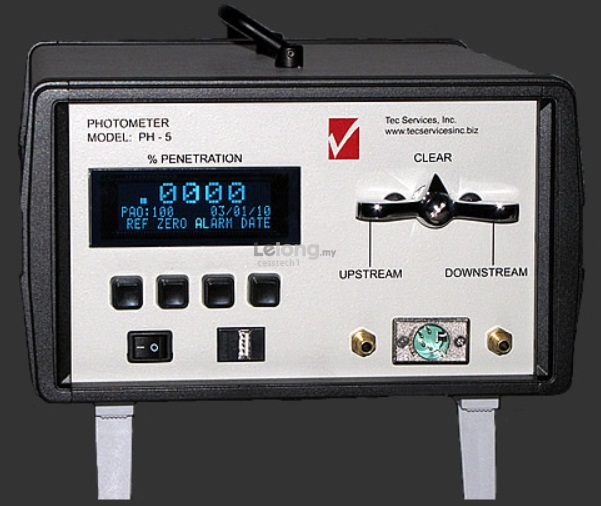

TEC Services, Inc. Aerosol Photometer, Model PH5

TEC Services, Inc. Aerosol Photometer, Model PH5

• The PH-5 is the most highly advanced aerosol photometer available today. The PH-5 utilizes a high resolution graphics display providing an easy to read panel display. The extremely simple menu-driven software system utilizes command prompts to inform the user of each setup process. The powerful microprocessor provides control of numerous functions, not available on any other aerosol photometer.
• The PH-5 plug and play probe is light weight and features remote control of alarm options (includes a visual, audible, and the NEW INNOVATIVE VIBRATING alarm). The machined aluminum housing and heavy duty metal connector to the main unit provides years of trouble-free use.

Features :
- High Resolution Graphical Display
- Menu-Driven Software Functions
- Automatic Zeroing and Ranging
- Proven LED Light Source (Light Chamber)
- Reference Settings for Multiple Testing Reagents
- Retains Reference Settings When Powered Off
- Displays Upstream Ref. / Concentration Setting
- Stable at Low Concentrations of Aerosol (≥ 10ug/l)
- Probe Selectable Audible, Visual, Vibrating Alarms
- Plug and Play Probe – 11 foot length
- USB Interface.
- Lightweight Heavy Duty Black Aluminum Case
- Accepts Worldwide Operating Voltages
- Optional Heavy Duty Shipping / Carrying Case

SPECIFICATIONS
Case: Black Aluminum w/ comb. lock
Size: 13.5" L x 10" W x 6" H
Weight: 18 lbs. (8.2 kg)
Power: 100-250 VAC 50/60 Hz
Power Consumption: .92Amps @ 120V; .46Amps @ 240 V
Minimum Display Reading: .0001%
Maximum Display Reading: 1000%
Sample Flow Rate: 1 CFM (28.3 SLPM)
