Highlights:
- WSXGA 1600 X 900 resolution
- HDMI and VGA inputs for flexible connectivity
- Eye ProTech for comfortable viewing
- Eco Mode for low energy consumption
- Various ViewMode color rendering options
Specifications:
Display
Display Size (in.): 20
Viewable Area (in.): 19.5
Panel Type: TN Technology
Resolution: 1600 x 900
Resolution Type: WSXGA (Wide Super XGA)
Static Contrast Ratio: 600:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Viewing Angles: 90º horizontal, 65º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Pixel Size: 0.27 mm (H) x 0.266 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1600x900
Mac® Resolution (max): 1600x900
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1600x900

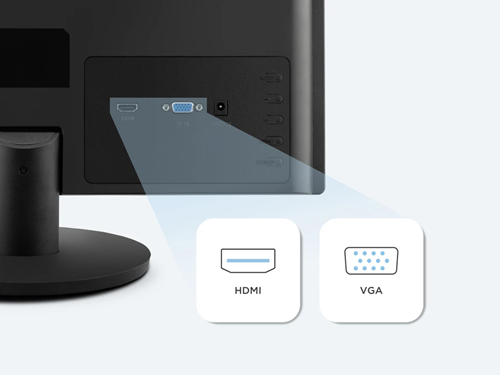

Connector
VGA: 1
HDMI 1.4: 1
Power in: DC Socket (Center Positive)
Power
Eco Mode (Conserve): 11W
Eco Mode (optimized): 14W
Consumption (typical): 17W
Consumption (max): 22W
Voltage: AC 100-240V
Stand-by: 0.3W
Power Supply: External Power Adaptor
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 75 x 75 mm
Input Signal
Frequency Horizontal: 24 ~ 83KHz
Frequency Vertical: 50 ~ 76Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4)
Analog Sync: Separate - RGB Analog
Ergonomics
Tilt (Forward/Back): -4º / 14º
Weight (imperial)
Net (lbs): 3.5
Net Without Stand (lbs): 3.1
Gross (lbs): 5.3
Weight (metric)
Net (kg): 1.6
Net Without Stand (kg): 1.4
Gross (kg): 2.4

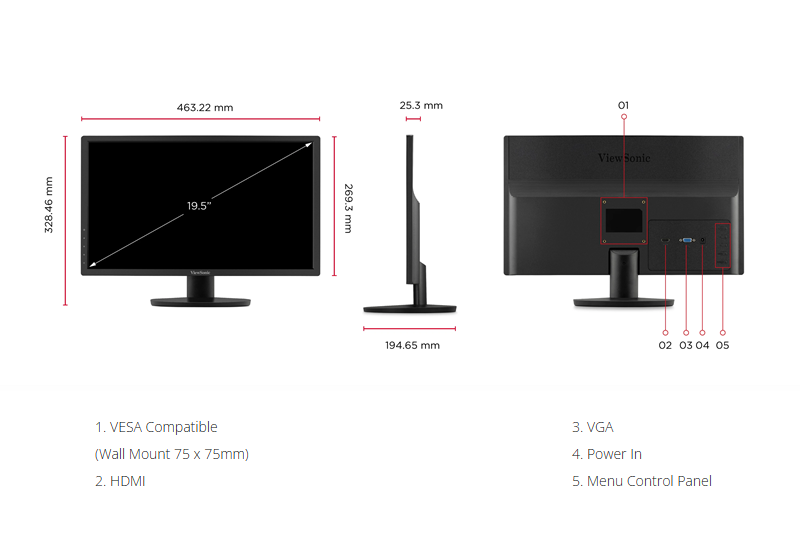

Dimensions (imperial) (wxhxd)
Packaging (in.): 20.5 x 13.2 x 3.9
Physical (in.): 18.24 x 12.93 x 7.66
Physical Without Stand (in.): 18.24 x 10.6 x 1
Dimensions (metric) (wxhxd)
Packaging (mm): 520 x 335 x 100
Physical (mm): 463.22 x 328.46 x 194.65
Physical Without Stand (mm): 463.22 x 269.3 x 25.3
Package Contents:
1 x VA2025-H Monitor,
1 x HDMI Cable (v1.4; Male-Male),
1 x AC/DC Adapter,
1 x Quick Start Guide
Warranty:
3 Years

|
