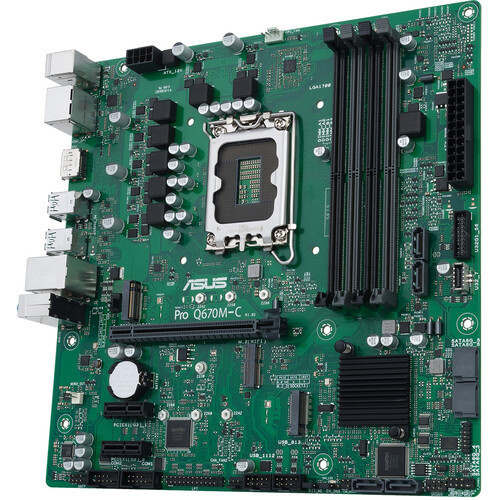

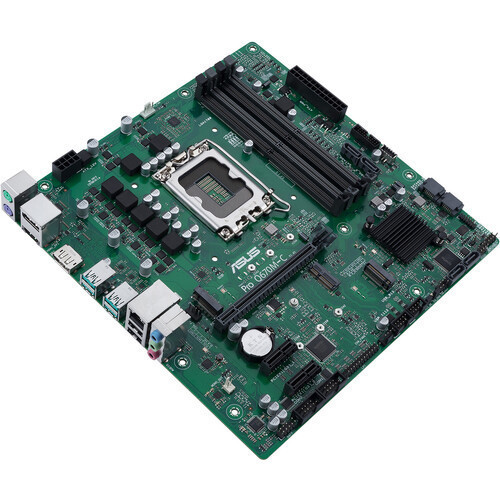

Asus Q670M-C-CSM Micro-ATX Q670 Intel vPro LGA1700

Micro-ATX Q670 business motherboard with Intel® vPro support and enhanced security, reliability, manageability and serviceability

• Intel^® LGA 1700 socket: Ready for 12th Gen Intel Core^TM processors
• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
• Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes

Pro Q670M-C-CSM

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Q670 Chipset

Memory

Max Memory Size:128GB

 4 x DIMM, Max. 192GB, Support for DDR5 5600/5400/5200/5000/4800 memory modules*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)
Support for ECC Un-buffered DIMM memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM memory modules
Optimem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Graphics

1 x HDMI 2.0

2 x DisplayPort**

1 x HDMI®***

* Graphics specifications may vary between CPU types.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel^® Core™ Processors (14^th & 13^th & 12^th Gen)*

1 x PCIe 4.0/3.0 x16 slot

Intel^® Q670 Chipset

2 x PCIe 3.0 x1 slots

* Please check PCIe bifurcation table in support site.

Storage

Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel^® Core™ Processors (14^th & 13^th & 12^th Gen)*

M.2_1 slot (Key M), type 2242/2260/2280(support PCIe 4.0 x4 mode)

Intel^® Q670 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)

6 x SATA 6Gb/s ports

* Intel^® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

Ethernet

1 x Intel® 1Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

*Wi-Fi module is sold separately.

USB

Rear USB:Total 6 ports

4 x USB 3.2 Gen 2 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 7 ports

1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback "

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

4 x USB 3.2 Gen 2 ports (4 x Type-A)

2x USB 2.0 ports (2 x Type-A)

2 x DisplayPort

1 x HDMI® port

3 x Audio jacks

1 x Intel® 1Gb Ethernet

1 x PS/2 keyboard (purple) port

1 x PS/2 mouse (green) port

Internal I/O Connectors

Fan and cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Chassis Intrude header

2 x COM Port headers

1 x Front Panel Audio header (AAFP)

1 x COM debug header

1 x DIS ME jumper

1 x LPT header

1 x Mono-out header(with Amp IC)

1 x M.2 slot (Key E)

1 x Speaker header

1 x 10-1 System Panel header

Special Features

ASUS EZ DIY

- Box Headers

Bespoke Motherboard Design & Business Focused Features

- ASUS Boot Defender

- Q-LED Core

- ASUS Self Recovering BIOS

- ASUS Event Log

- ASUS Commercial BIOS kit

- Anti-Moisture

- 24/7 Reliability

- Overcurrent Protection

TPM 2.0 IC onboard

Software Features

ASUS Exclusive Software

IT Management software supported

- ASUS Control Center Express(ACCE)

BIOS

256 Mb Flash ROM

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 SSD screw package

1 x M.2 Key E screw package

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

microATX
24.4cm x 24.4cm
